What is steel wire rope lay directions?
The lay direction of steel wire rope describes the arrangement of wires within the strands and the arrangement of strands within the rope itself. Common lay directions for steel wire ropes include:
-

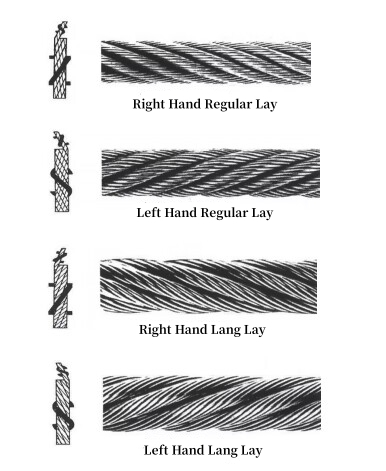

Right Hand Regular Lay: In this configuration, the wires in the strands are twisted to the left, while the strands in the rope are twisted to the right. This means the twist direction of the strands is opposite to that of the wires. Right hand regular lay ropes are stable in use, have strong resistance to rotation, and are suitable for most engineering applications, such as lifting machinery and winches.
-
Left Hand Regular Lay: In contrast to right regular lay, the wires in the strands twist to the right, while the strands twist to the left. Left hand regular lay ropes are used less frequently, but may be needed in specific machinery to counterbalance other rotational forces.
-
Right Hand Lang Lay: Here, both the wires and the strands are twisted to the right. These ropes have better wear and fatigue resistance, but due to their tendency to rotate, they are typically used in fixed load situations, like lifting systems or excavator ropes.
-
Left Hand Lang Lay: In this case, both the wires and the strands are twisted to the left. This configuration is similar to right hand lang lay and is usually employed in situations where rotational force requirements are low or for specific machinery needing left-handed rotation.
Differences and Applications:
- Regular Lay: Wires and strands twist in opposite directions, providing stability for wide applications.
- Lang Lay: Wires and strands twist in the same direction, offering better wear resistance but may induce rotation.
When choosing a steel rope lay type, factors such as working environment, load conditions, and expected lifespan should be considered.
